M5Stack · Espressif ESP32-S3, Arduino/ESP-IDF/UIFlow

AtomS3 projects and builds

24 mm ESP32-S3 development controller with a 0.85-inch color display, programmable button, IMU and Grove connector.

Official page ↗Buying-link policy

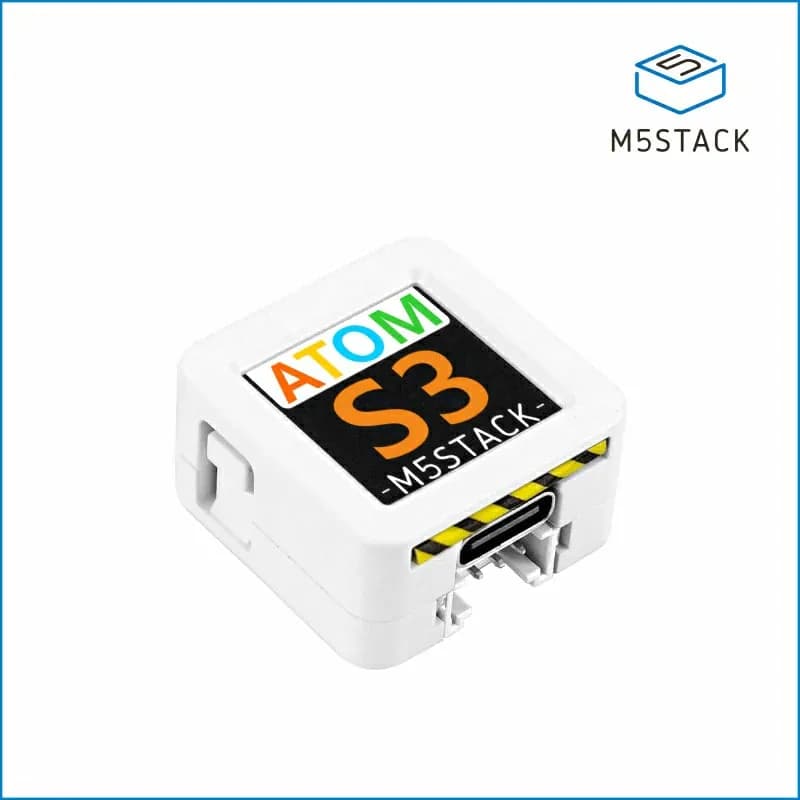

AtomS3 product photograph
Image: M5Stack product photography ↗ · Original image asset ↗Manufacturer product photograph copied locally at reduced WebP resolution solely to identify the device in independent editorial coverage. The image is attributed and linked to its original product page, is not used as a brand asset or endorsement, and should be removed if the rights holder objects.

Why it belongs on the bench

M5Stack AtomS3 is a 24 mm ESP32-S3 controller with a 0.85-inch color display, programmable push control, MPU6886 IMU, infrared emitter and Grove-style expansion. It is best matched to compact embedded interfaces and the catalogue’s manufacturer user demo, which exercises Wi-Fi scanning, I2C, UART, PWM, analog input, infrared and motion sensing. The cited AtomS3 model is marked end-of-life in M5Stack’s store, so confirm that a listing is this screened AtomS3 rather than another ATOM-family variant. The official demo documents PlatformIO and fixed board-specific pins; firmware for another ATOM model should not be assumed compatible.

Explore more M5Stack devices and projects.

Sources

Sources and further reading

Original project pages, manufacturer documentation and repositories used while preparing this page. Last reviewed .

  1. AtomS3 official pageM5Stack
  2. m5stack/M5AtomS3-UserDemoGitHub repository

AtomS3 projects and open-source builds

01
beginnertime varies1 device

AtomS3 user demo

Reference project for learning AtomS3 screen, button, IMU and infrared functions.

hardware demo

Useful alternatives to AtomS3

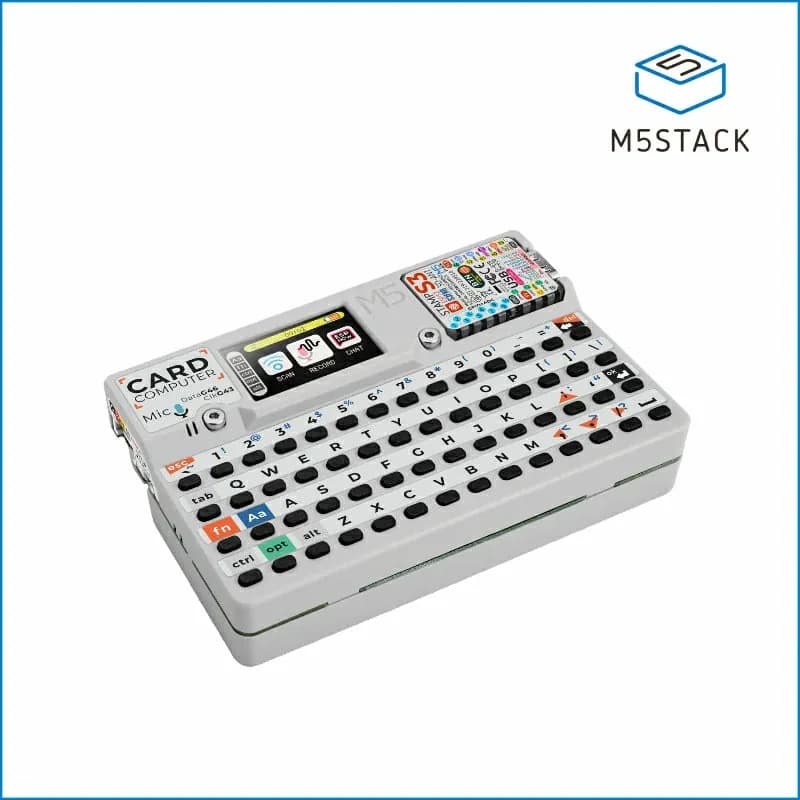

Cardputer product photograph
M5Stack product photography ↗
M5Stackintermediate

Cardputer

Pocket ESP32-S3 computer with a 56-key keyboard, 1.14-inch display, audio, infrared, microSD and expansion access.

Platform
Espressif ESP32-S3 (StampS3), Arduino/ESP-IDF/UIFlow
Builds
06
Core2 product photograph
M5Stack product photography ↗
M5Stackintermediate

Core2

Stackable ESP32 IoT controller with a 2-inch capacitive touchscreen, battery, IMU, speaker and Grove expansion.

Platform
Espressif ESP32-D0WDQ6-V3, Arduino/ESP-IDF/UIFlow
Builds
03

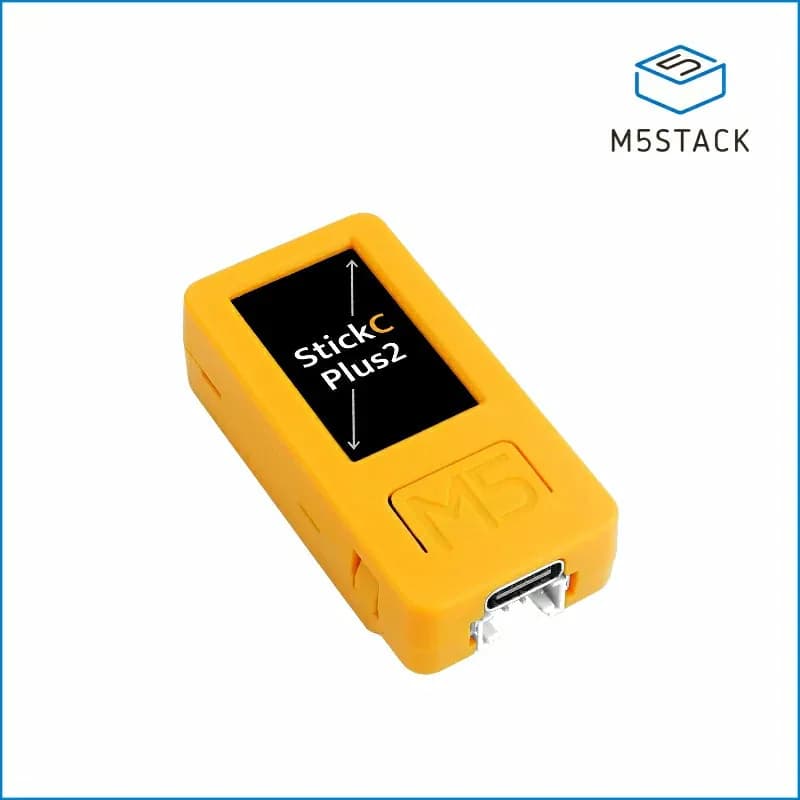

M5StickC PLUS2 product photograph
