Adafruit · Espressif ESP32-S3 with 16 MB flash and 8 MB octal PSRAM, Arduino/CircuitPython

Adafruit Qualia ESP32-S3 for RGB-666 Displays projects and builds

ESP32-S3 controller for compatible 40-pin RGB-666 TFT displays, with 16 MB flash, 8 MB PSRAM, touch I2C, backlight control, buttons, STEMMA QT and USB-C.

Official page ↗Buying-link policy

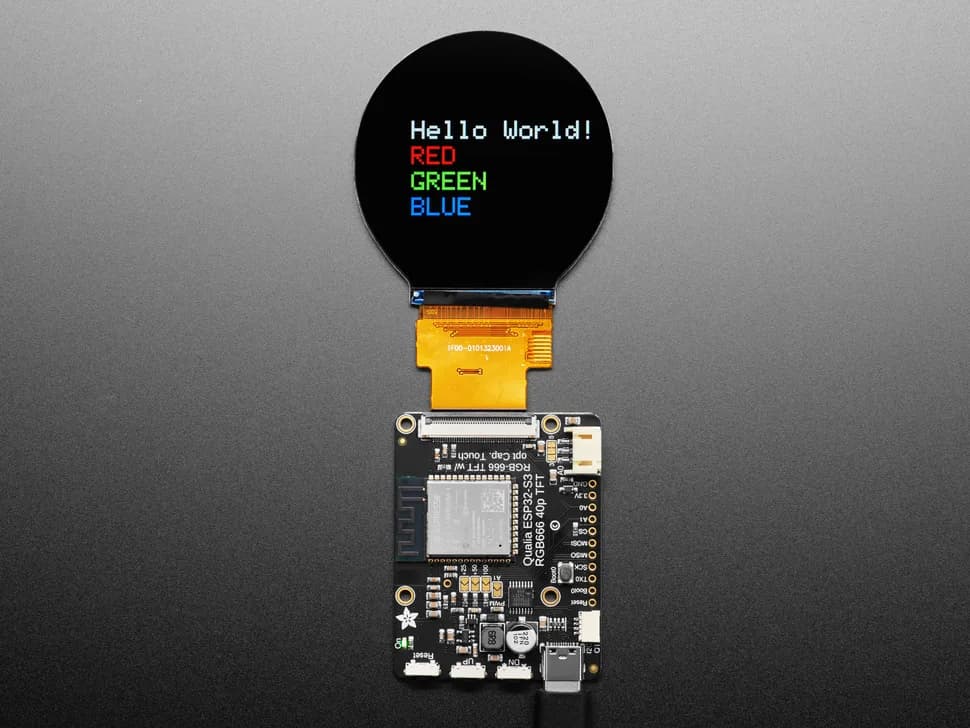

Adafruit Qualia ESP32-S3 for RGB-666 Displays product photograph
Image: Melissa LeBlanc-Williams / Adafruit, CC BY-SA 3.0 ↗ · Original image asset ↗ · Image licence ↗Melissa LeBlanc-Williams’s Adafruit Learning System photograph is licensed CC BY-SA 3.0 on the linked asset record. Flashable converted the original JPEG to a metadata-stripped WebP without cropping or changing its aspect ratio and distributes that adaptation under the same licence.

Why it belongs on the bench

Adafruit Qualia ESP32-S3 product 5800 is a dedicated controller for compatible 40-pin RGB-666 TFT panels. Its ESP32-S3 module combines 16 MB flash and 8 MB octal PSRAM with a native RGB display peripheral, while the board adds a constant-current backlight driver, PCA9554A I/O expander, two buttons, touch-capable I2C, STEMMA QT, USB-C and limited spare analogue and SPI pins. A screen is not included. Panel pinout, resolution, initialization sequence and timing must all match the software; a generic 40-pin ribbon is not proof of compatibility. The catalogue’s sushi conveyor pairs controller product 5800 with display product 5797 or 5799 and provides a separate UF2 for each display. Adafruit listed the controller at US$19.95 but marked it out of stock on 2026-10-11, so confirm current controller and panel availability before committing to the build.

Explore more Adafruit devices and projects.

Sources

Sources and further reading

Original project pages, manufacturer documentation and repositories used while preparing this page. Last reviewed .

  1. Adafruit Qualia ESP32-S3 for RGB-666 Displays official pageAdafruit
  2. Adafruit Qualia Esp32 S3 For Rgb666 Displays — OverviewAdafruit Learning System
  3. Qualia S3 Sushi Conveyor BeltAdafruit Learning System
  4. Qualia S3 Sushi Conveyor Belt — SoftwareAdafruit Learning System
  5. Qualia S3 Sushi Conveyor Belt — AssemblyAdafruit Learning System
  6. adafruit/Adafruit_Learning_System_Guides — Qualia / Qualia S3 Sushi Conveyor BeltGitHub repository
